inet::physicallayer::Ieee80211OFDMTimingRelatedParametersBase Class Reference

#include <Ieee80211OFDMMode.h>

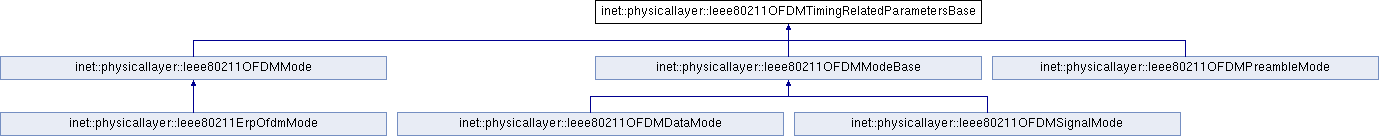

Inheritance diagram for inet::physicallayer::Ieee80211OFDMTimingRelatedParametersBase:
inet::physicallayer::Ieee80211OFDMMode inet::physicallayer::Ieee80211OFDMModeBase inet::physicallayer::Ieee80211OFDMPreambleMode inet::physicallayer::Ieee80211ErpOfdmMode inet::physicallayer::Ieee80211OFDMDataMode inet::physicallayer::Ieee80211OFDMSignalMode

Public Member Functions

 Ieee80211OFDMTimingRelatedParametersBase (Hz channelSpacing)

Hz getSubcarrierFrequencySpacing () const

const simtime_t getFFTTransformPeriod () const

const simtime_t getGIDuration () const

const simtime_t getSymbolInterval () const

const Hz getChannelSpacing () const


Protected Attributes

Hz channelSpacing


Constructor & Destructor Documentation

inet::physicallayer::Ieee80211OFDMTimingRelatedParametersBase::Ieee80211OFDMTimingRelatedParametersBase ( Hz  channelSpacing)
inline
35 : channelSpacing(channelSpacing) {}

Member Function Documentation

const Hz inet::physicallayer::Ieee80211OFDMTimingRelatedParametersBase::getChannelSpacing ( ) const
inline

Referenced by inet::physicallayer::Ieee80211LayeredOFDMTransmitter::getCarrierSpacing().

42 { return channelSpacing; }
const simtime_t inet::physicallayer::Ieee80211OFDMTimingRelatedParametersBase::getFFTTransformPeriod ( ) const
inline
38 { return simtime_t(1 / getSubcarrierFrequencySpacing().get()); }
const simtime_t inet::physicallayer::Ieee80211OFDMTimingRelatedParametersBase::getGIDuration ( ) const
inline
39 { return getFFTTransformPeriod() / 4; }
Hz inet::physicallayer::Ieee80211OFDMTimingRelatedParametersBase::getSubcarrierFrequencySpacing ( ) const
inline
37 { return channelSpacing / 64; }
const simtime_t inet::physicallayer::Ieee80211OFDMTimingRelatedParametersBase::getSymbolInterval ( ) const
inline

Referenced by inet::physicallayer::Ieee80211OFDMModeBase::computeGrossBitrate(), and inet::physicallayer::Ieee80211OFDMDataMode::getDuration().

40 { return getGIDuration() + getFFTTransformPeriod(); }

Member Data Documentation

Hz inet::physicallayer::Ieee80211OFDMTimingRelatedParametersBase::channelSpacing
protected

Referenced by inet::physicallayer::Ieee80211OFDMMode::getCcaTime(), inet::physicallayer::Ieee80211OFDMMode::getPhyRxStartDelay(), inet::physicallayer::Ieee80211OFDMMode::getSifsTime(), and inet::physicallayer::Ieee80211OFDMMode::getSlotTime().

The documentation for this class was generated from the following file:
