inet::physicallayer::Ieee80211OFDMInterleaverModule Class Reference

#include <Ieee80211OFDMInterleaverModule.h>

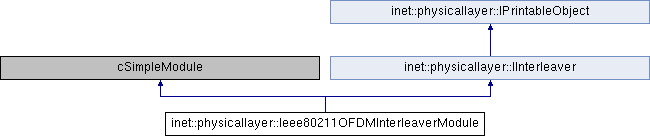

Inheritance diagram for inet::physicallayer::Ieee80211OFDMInterleaverModule:

Public Member Functions
virtual	~Ieee80211OFDMInterleaverModule ()
virtual std::ostream &	printToStream (std::ostream &stream, int level) const override
	Prints this object to the provided output stream. More...
virtual BitVector	interleave (const BitVector &bits) const override
virtual BitVector	deinterleave (const BitVector &bits) const override
virtual const Ieee80211OFDMInterleaving *	getInterleaving () const override
Public Member Functions inherited from inet::physicallayer::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	getInfoStringRepresentation () const
virtual std::string	getDetailStringRepresentation () const
virtual std::string	getDebugStringRepresentation () const
virtual std::string	getTraceStringRepresentation () const
virtual std::string	getCompleteStringRepresentation () const

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *msg) override

Protected Attributes
const Ieee80211OFDMInterleaver *	interleaver = nullptr

Additional Inherited Members
Public Types inherited from inet::physicallayer::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }

Constructor & Destructor Documentation

inet::physicallayer::Ieee80211OFDMInterleaverModule::~Ieee80211OFDMInterleaverModule ( )

virtual

{
    delete interleaver;
}

Member Function Documentation

virtual BitVector inet::physicallayer::Ieee80211OFDMInterleaverModule::deinterleave ( const BitVector &  bits ) const

inlineoverridevirtual

Implements inet::physicallayer::IInterleaver.

{ return interleaver->deinterleave(bits); }

virtual const Ieee80211OFDMInterleaving* inet::physicallayer::Ieee80211OFDMInterleaverModule::getInterleaving ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IInterleaver.

{ return interleaver->getInterleaving(); }

virtual void inet::physicallayer::Ieee80211OFDMInterleaverModule::handleMessage ( cMessage *  msg )

inlineoverrideprotectedvirtual

{ throw cRuntimeError("This module doesn't handle self messages."); }

void inet::physicallayer::Ieee80211OFDMInterleaverModule::initialize ( int  stage )

overrideprotectedvirtual

{
    if (stage == INITSTAGE_LOCAL) {
        int numberOfCodedBitsPerSymbol = par("numberOfCodedBitsPerSymbol");
        int numberOfCodedBitsPerSubcarrier = par("numberOfCodedBitsPerSubcarrier");
        const Ieee80211OFDMInterleaving *interleaving = new Ieee80211OFDMInterleaving(numberOfCodedBitsPerSymbol, numberOfCodedBitsPerSubcarrier);
        interleaver = new Ieee80211OFDMInterleaver(interleaving);
    }
}

virtual BitVector inet::physicallayer::Ieee80211OFDMInterleaverModule::interleave ( const BitVector &  bits ) const

inlineoverridevirtual

Implements inet::physicallayer::IInterleaver.

{ return interleaver->interleave(bits); }

virtual int inet::physicallayer::Ieee80211OFDMInterleaverModule::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

std::ostream & inet::physicallayer::Ieee80211OFDMInterleaverModule::printToStream ( std::ostream &  stream, int  level  ) const

overridevirtual

Prints this object to the provided output stream.

Function calls to operator<< with pointers or references either const or not are all forwarded to this function.

Reimplemented from inet::physicallayer::IPrintableObject.

{
    return interleaver->printToStream(stream, level);
}

Member Data Documentation

const Ieee80211OFDMInterleaver* inet::physicallayer::Ieee80211OFDMInterleaverModule::interleaver = nullptr

protected

Referenced by initialize(), printToStream(), and ~Ieee80211OFDMInterleaverModule().

---

The documentation for this class was generated from the following files:

• Ieee80211OFDMInterleaverModule.h
• Ieee80211OFDMInterleaverModule.cc
