Network RTPUnicast2

Package: inet.examples.rtp.unicast2
File: examples/rtp/unicast2/unicast.ned

(no description)

Usage diagram:

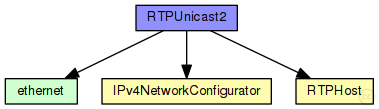

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Properties:

Name	Value	Description
isNetwork

Unassigned submodule parameters:

Name	Type	Default value	Description
sender.status.initialStatus	string	"UP"	TODO @signal, @statistic
sender.routingTable.forwarding	bool
sender.routingTable.multicastForwarding	bool
sender.interfaceTable.displayAddresses	bool	false	whether to display IP addresses on links
sender.pcapRecorder.verbose	bool	false	whether to log packets on the module output
sender.pcapRecorder.pcapFile	string	""	the PCAP file to be written
sender.pcapRecorder.snaplen	int	65535	maximum number of bytes to record per packet
sender.pcapRecorder.dumpBadFrames	bool	true	enable dump of frames with hasBitError
sender.pcapRecorder.moduleNamePatterns	string	"wlan[] eth[] ppp[] ext[]"	space-separated list of sibling module names to listen on
sender.pcapRecorder.sendingSignalNames	string	"packetSentToLower"	space-separated list of outbound packet signals to subscribe to
sender.pcapRecorder.receivingSignalNames	string	"packetReceivedFromLower"	space-separated list of inbound packet signals to subscribe to
sender.pcapRecorder.alwaysFlush	bool	false	flush the pcapFile after each write to ensure that all packets are captured in case of a crash
sender.lo0.lo.interfaceTableModule	string		The path to the InterfaceTable module
sender.lo0.lo.mtu	int	4470B
sender.rtpApp.commonName	string		the common name (CNAME) of this host
sender.rtpApp.sessionEnterDelay	double		delay before starts a new session
sender.rtpApp.transmissionStartDelay	double		delay before start transmission (related to "sender module created")
sender.rtpApp.transmissionStopDelay	double		delay before stops transmission (related to "start transmission")
sender.rtpApp.sessionLeaveDelay	double		delay before leave session (related to "file transmission finished/stopped" or "session entered" when fileName is "")
sender.rtp.interfaceTableModule	string		The path to the InterfaceTable module
sender.rtp.routingTableModule	string
sender.rtcp.interfaceTableModule	string		The path to the InterfaceTable module
receiver.status.initialStatus	string	"UP"	TODO @signal, @statistic
receiver.routingTable.forwarding	bool
receiver.routingTable.multicastForwarding	bool
receiver.interfaceTable.displayAddresses	bool	false	whether to display IP addresses on links
receiver.pcapRecorder.verbose	bool	false	whether to log packets on the module output
receiver.pcapRecorder.pcapFile	string	""	the PCAP file to be written
receiver.pcapRecorder.snaplen	int	65535	maximum number of bytes to record per packet
receiver.pcapRecorder.dumpBadFrames	bool	true	enable dump of frames with hasBitError
receiver.pcapRecorder.moduleNamePatterns	string	"wlan[] eth[] ppp[] ext[]"	space-separated list of sibling module names to listen on
receiver.pcapRecorder.sendingSignalNames	string	"packetSentToLower"	space-separated list of outbound packet signals to subscribe to
receiver.pcapRecorder.receivingSignalNames	string	"packetReceivedFromLower"	space-separated list of inbound packet signals to subscribe to
receiver.pcapRecorder.alwaysFlush	bool	false	flush the pcapFile after each write to ensure that all packets are captured in case of a crash
receiver.lo0.lo.interfaceTableModule	string		The path to the InterfaceTable module
receiver.lo0.lo.mtu	int	4470B
receiver.rtpApp.commonName	string		the common name (CNAME) of this host
receiver.rtpApp.sessionEnterDelay	double		delay before starts a new session
receiver.rtpApp.transmissionStartDelay	double		delay before start transmission (related to "sender module created")
receiver.rtpApp.transmissionStopDelay	double		delay before stops transmission (related to "start transmission")
receiver.rtpApp.sessionLeaveDelay	double		delay before leave session (related to "file transmission finished/stopped" or "session entered" when fileName is "")
receiver.rtp.interfaceTableModule	string		The path to the InterfaceTable module
receiver.rtp.routingTableModule	string
receiver.rtcp.interfaceTableModule	string		The path to the InterfaceTable module
configurator.minLinkWeight	double	1E-3
configurator.config	xml	xml("")	XML configuration parameters for IP address assignment and adding manual routes
configurator.assignAddresses	bool	true	assign IP addresses to all interfaces in the network
configurator.assignDisjunctSubnetAddresses	bool	true	avoid using the same address prefix and netmask on different links when assigning IP addresses to interfaces
configurator.addStaticRoutes	bool	true	add static routes to the routing tables of all nodes to route to all destination interfaces (only where applicable; turn off when config file contains manual routes)
configurator.addDefaultRoutes	bool	true	add default routes if all routes from a source node go through the same gateway (used only if addStaticRoutes is true)
configurator.addSubnetRoutes	bool	true	add subnet routes instead of destination interface routes (only where applicable; used only if addStaticRoutes is true)
configurator.optimizeRoutes	bool	true	optimize routing tables by merging routes, the resulting routing table might route more packets than the original (used only if addStaticRoutes is true)
configurator.dumpTopology	bool	false	print extracted network topology to the module output
configurator.dumpLinks	bool	false	print recognized network links to the module output
configurator.dumpAddresses	bool	false	print assigned IP addresses for all interfaces to the module output
configurator.dumpRoutes	bool	false	print configured and optimized routing tables for all nodes to the module output
configurator.dumpConfig	string	""	write configuration into the given config file that can be fed back to speed up subsequent runs (network configurations)

Source code:

network RTPUnicast2
{
    types:
        channel ethernet extends ned.DatarateChannel
        {
            parameters:
                delay = normal(0.00015s, 0.00005s);
                datarate = 10Mbps;
                ber = 0.00001;
        }

    submodules:
        sender: RTPHost {
            parameters:
                forwarding = false;
                profileName = "inet.transportlayer.rtp.RTPAVProfile";
                destinationAddress = "receiver";
                portNumber = 5004;
                bandwidth = 8000;
                fileName = "../data/moving.mpg.gdf";
                payloadType = 32;
                @display("p=185,128");
        }
        receiver: RTPHost {
            parameters:
                forwarding = false;
                profileName = "inet.transportlayer.rtp.RTPAVProfile";
                destinationAddress = "sender";
                portNumber = 5004;
                bandwidth = 8000;
                fileName = "";
                payloadType = 32;
                @display("p=54,128");
        }
        configurator: IPv4NetworkConfigurator {
            parameters:
                @display("p=54,23");
        }
    connections:
        sender.pppg++ <--> ethernet <--> receiver.pppg++;
}
