Packet Ieee80211ReassociationResponseFrame

File: src/inet/linklayer/ieee80211/mgmt/Ieee80211MgmtFrames.msg

C++ definition

Re-association response frame format (management frame + body)

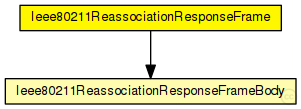

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Extends:

Name	Type	Description
Ieee80211ManagementFrame	packet	Base class for 802.11 management frames (subclasses will add frame body contents)

Fields:

Name	Type	Description
type	short	type and subtype
byteLength
body	Ieee80211ReassociationResponseFrameBody
address3	MACAddress
fragmentNumber	short
sequenceNumber	uint16
transmitterAddress	MACAddress	aka address2
toDS	bool
fromDS	bool
retry	bool
moreFragments	bool
duration	simtime_t	TODO: rename to durationField (levy)
AID	short	"id" (Association ID) in the Duration/ID field (-1=no ID)
receiverAddress	MACAddress	aka address1
MACArrive	simtime_t	FIXME remove it, technical data, used inside of MAC module

Source code:

//
// Re-association response frame format (management frame + body)
//
packet Ieee80211ReassociationResponseFrame extends Ieee80211ManagementFrame
{
    type = ST_REASSOCIATIONRESPONSE;
    byteLength = 28+getBody().getBodyLength();   //FIXME variable bodyLength
    Ieee80211ReassociationResponseFrameBody body;
}
