This transmitter model produces IEEE 802.11 transmissions that have dimensional transmission power (that changes over time and/or frequency) in their analog representation. The bit domain, symbol domain, and sample domains of the transmissions are not represented.
See also Ieee80211DimensionalReceiver, Ieee80211DimensionalRadio, and Ieee80211DimensionalRadioMedium.

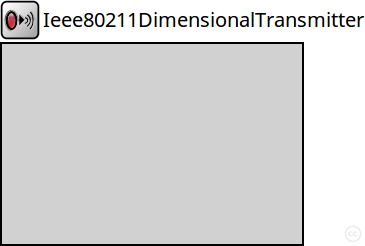

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.
The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.
Name | Type | Description |
---|---|---|
DimensionalTransmitterBase | compound module |
This transmitter model produces transmissions that use dimensional transmission power (that changes over time and/or frequency) in their analog representation and the configured modulation. |
Name | Type | Default value | Description |
---|---|---|---|
preambleDuration | double |
preamble duration |
|
headerBitLength | double |
number of header bits added to the length of the MAC frame |
|
bitrate | double |
the bitrate of the transmitter is used to compute the duration of the transmission |
|
power | double |
transmission power |
|
carrierFrequency | double |
center frequency of the band where the transmitter transmits on the medium |
|
bandwidth | double |
bandwidth of the band where the transmitter transmits on the medium |
|
modulation | string | "BPSK" |
"BPSK", "16-QAM", "256-QAM" |
dimensions | string | "time" |
dimensions of power: time and/or frequency |
timeGains | string | "0% 0dB 100% 0dB" |
sequence of time and gain pairs; time is in [%] or [s], negative time measures from the end; gain is in [dB] or [0..1]; default value is a flat signal |
frequencyGains | string | "0% 0dB 100% 0dB" |
sequence of frequency and gain pairs; frequency is in [%] or [Hz], negative frequency measures from the end; gain is in [dB] or [0..1]; default value is a flat signal |
interpolationMode | string | "sample-hold" | |
opMode | string |
TODO: remove parameters when base module is changed |
|
bandName | string | ||
channelNumber | int |
Name | Value | Description |
---|---|---|
display | i=block/wtx | |
class | Ieee80211DimensionalTransmitter |
// // This transmitter model produces IEEE 802.11 transmissions that have // dimensional transmission power (that changes over time and/or frequency) in // their analog representation. The bit domain, symbol domain, and sample // domains of the transmissions are not represented. // // See also ~Ieee80211DimensionalReceiver, ~Ieee80211DimensionalRadio, and // ~Ieee80211DimensionalRadioMedium. // module Ieee80211DimensionalTransmitter extends DimensionalTransmitterBase { parameters: // TODO: remove parameters when base module is changed string opMode @enum("a","b","g(erp)","g(mixed)","n","p"); string bandName @enum("2.4 GHz","5 GHz"); int channelNumber; modulation = default("BPSK"); // TODO: this is simply wrong @class(Ieee80211DimensionalTransmitter); }
