Network BulkTransfer6

Package: inet.examples.ipv6.ipv6bulk
File: examples/ipv6/ipv6bulk/BulkTransfer6.ned

(no description)

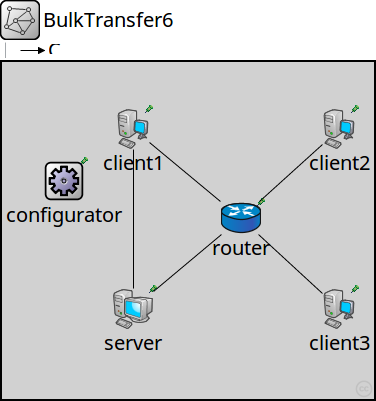

Usage diagram:

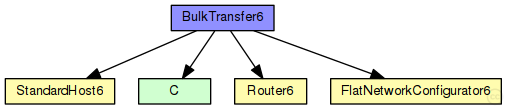

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram.

Properties:

Name	Value	Description
isNetwork

Unassigned submodule parameters:

Name	Type	Default value	Description
client1.status.initialStatus	string	"UP"	TODO @signal, @statistic
client1.routingTable.forwarding	bool
client1.routingTable.multicastForwarding	bool
client1.interfaceTable.displayAddresses	bool	false	whether to display IP addresses on links
client1.pcapRecorder.verbose	bool	false	whether to log packets on the module output
client1.pcapRecorder.pcapFile	string	""	the PCAP file to be written
client1.pcapRecorder.snaplen	int	65535	maximum number of bytes to record per packet
client1.pcapRecorder.dumpBadFrames	bool	true	enable dump of frames with hasBitError
client1.pcapRecorder.moduleNamePatterns	string	"wlan[] eth[] ppp[] ext[]"	space-separated list of sibling module names to listen on
client1.pcapRecorder.sendingSignalNames	string	"packetSentToLower"	space-separated list of outbound packet signals to subscribe to
client1.pcapRecorder.receivingSignalNames	string	"packetReceivedFromLower"	space-separated list of inbound packet signals to subscribe to
client1.pcapRecorder.alwaysFlush	bool	false	flush the pcapFile after each write to ensure that all packets are captured in case of a crash
client1.lo0.lo.interfaceTableModule	string		The path to the InterfaceTable module
client1.lo0.lo.mtu	int	4470B
client2.status.initialStatus	string	"UP"	TODO @signal, @statistic
client2.routingTable.forwarding	bool
client2.routingTable.multicastForwarding	bool
client2.interfaceTable.displayAddresses	bool	false	whether to display IP addresses on links
client2.pcapRecorder.verbose	bool	false	whether to log packets on the module output
client2.pcapRecorder.pcapFile	string	""	the PCAP file to be written
client2.pcapRecorder.snaplen	int	65535	maximum number of bytes to record per packet
client2.pcapRecorder.dumpBadFrames	bool	true	enable dump of frames with hasBitError
client2.pcapRecorder.moduleNamePatterns	string	"wlan[] eth[] ppp[] ext[]"	space-separated list of sibling module names to listen on
client2.pcapRecorder.sendingSignalNames	string	"packetSentToLower"	space-separated list of outbound packet signals to subscribe to
client2.pcapRecorder.receivingSignalNames	string	"packetReceivedFromLower"	space-separated list of inbound packet signals to subscribe to
client2.pcapRecorder.alwaysFlush	bool	false	flush the pcapFile after each write to ensure that all packets are captured in case of a crash
client2.lo0.lo.interfaceTableModule	string		The path to the InterfaceTable module
client2.lo0.lo.mtu	int	4470B
client3.status.initialStatus	string	"UP"	TODO @signal, @statistic
client3.routingTable.forwarding	bool
client3.routingTable.multicastForwarding	bool
client3.interfaceTable.displayAddresses	bool	false	whether to display IP addresses on links
client3.pcapRecorder.verbose	bool	false	whether to log packets on the module output
client3.pcapRecorder.pcapFile	string	""	the PCAP file to be written
client3.pcapRecorder.snaplen	int	65535	maximum number of bytes to record per packet
client3.pcapRecorder.dumpBadFrames	bool	true	enable dump of frames with hasBitError
client3.pcapRecorder.moduleNamePatterns	string	"wlan[] eth[] ppp[] ext[]"	space-separated list of sibling module names to listen on
client3.pcapRecorder.sendingSignalNames	string	"packetSentToLower"	space-separated list of outbound packet signals to subscribe to
client3.pcapRecorder.receivingSignalNames	string	"packetReceivedFromLower"	space-separated list of inbound packet signals to subscribe to
client3.pcapRecorder.alwaysFlush	bool	false	flush the pcapFile after each write to ensure that all packets are captured in case of a crash
client3.lo0.lo.interfaceTableModule	string		The path to the InterfaceTable module
client3.lo0.lo.mtu	int	4470B
server.status.initialStatus	string	"UP"	TODO @signal, @statistic
server.routingTable.forwarding	bool
server.routingTable.multicastForwarding	bool
server.interfaceTable.displayAddresses	bool	false	whether to display IP addresses on links
server.pcapRecorder.verbose	bool	false	whether to log packets on the module output
server.pcapRecorder.pcapFile	string	""	the PCAP file to be written
server.pcapRecorder.snaplen	int	65535	maximum number of bytes to record per packet
server.pcapRecorder.dumpBadFrames	bool	true	enable dump of frames with hasBitError
server.pcapRecorder.moduleNamePatterns	string	"wlan[] eth[] ppp[] ext[]"	space-separated list of sibling module names to listen on
server.pcapRecorder.sendingSignalNames	string	"packetSentToLower"	space-separated list of outbound packet signals to subscribe to
server.pcapRecorder.receivingSignalNames	string	"packetReceivedFromLower"	space-separated list of inbound packet signals to subscribe to
server.pcapRecorder.alwaysFlush	bool	false	flush the pcapFile after each write to ensure that all packets are captured in case of a crash
server.lo0.lo.interfaceTableModule	string		The path to the InterfaceTable module
server.lo0.lo.mtu	int	4470B
router.status.initialStatus	string	"UP"	TODO @signal, @statistic
router.routingTable.forwarding	bool
router.routingTable.multicastForwarding	bool
router.interfaceTable.displayAddresses	bool	false	whether to display IP addresses on links
router.pcapRecorder.verbose	bool	false	whether to log packets on the module output
router.pcapRecorder.pcapFile	string	""	the PCAP file to be written
router.pcapRecorder.snaplen	int	65535	maximum number of bytes to record per packet
router.pcapRecorder.dumpBadFrames	bool	true	enable dump of frames with hasBitError
router.pcapRecorder.moduleNamePatterns	string	"wlan[] eth[] ppp[] ext[]"	space-separated list of sibling module names to listen on
router.pcapRecorder.sendingSignalNames	string	"packetSentToLower"	space-separated list of outbound packet signals to subscribe to
router.pcapRecorder.receivingSignalNames	string	"packetReceivedFromLower"	space-separated list of inbound packet signals to subscribe to
router.pcapRecorder.alwaysFlush	bool	false	flush the pcapFile after each write to ensure that all packets are captured in case of a crash
router.lo0.lo.interfaceTableModule	string		The path to the InterfaceTable module
router.lo0.lo.mtu	int	4470B

Source code:

network BulkTransfer6
{
    types:
        channel C extends DatarateChannel
        {
            datarate = 10Mbps;
            delay = 0.1us;
        }
    submodules:
        client1: StandardHost6 {
            parameters:
                @display("p=131,67;i=device/pc3");
        }
        client2: StandardHost6 {
            parameters:
                @display("p=337,67;i=device/pc3");
        }
        client3: StandardHost6 {
            parameters:
                @display("p=337,247;i=device/pc3");
        }
        server: StandardHost6 {
            parameters:
                @display("p=131,247;i=device/pc2");
        }
        router: Router6 {
            parameters:
                @display("p=239,156");
        }
        configurator: FlatNetworkConfigurator6 {
            parameters:
                @display("p=62,119");
        }
    connections:
        client1.ethg++ <--> C <--> router.ethg++;
        client2.ethg++ <--> C <--> router.ethg++;
        client3.ethg++ <--> C <--> router.ethg++;
        client1.ethg++ <--> C <--> server.ethg++;
        server.ethg++ <--> C <--> router.ethg++;
}
